REBAR ROCK BOLTS

rockbolt.glorysteelwork.com

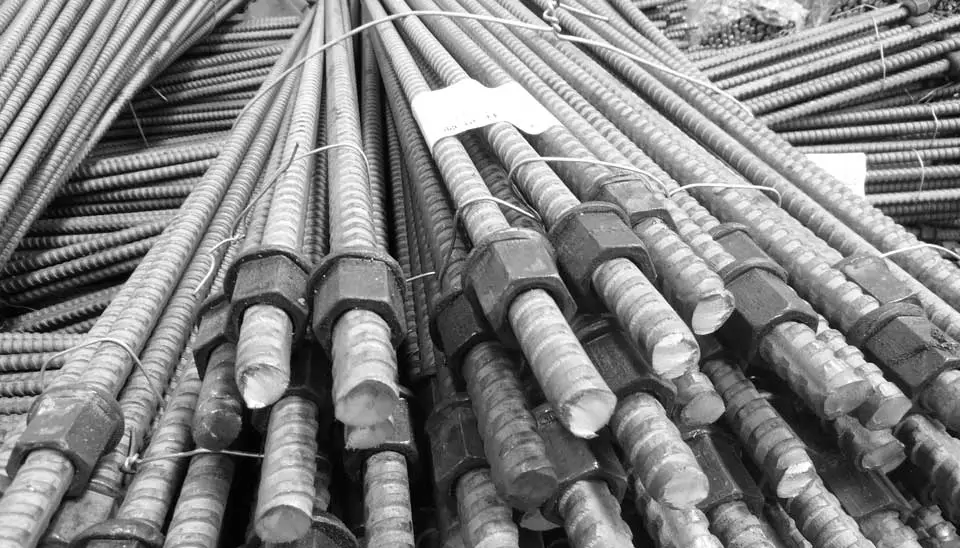

Full Threadbar Rock Bolt is Made Of Hot Rolled Rib Bar. Which Has Great Anchoring Effect And Can Be Cut According To Demands.

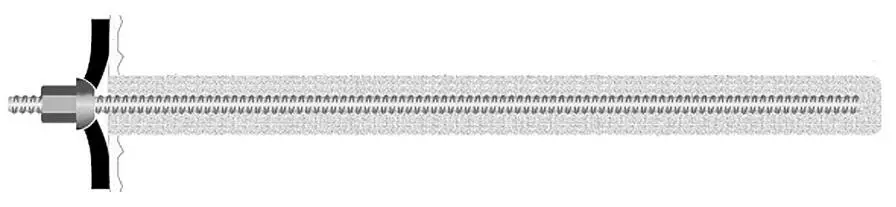

Functions: Being Used With Face Plate, Domed Ball, Anti -Friction Washer And Nut. Full Treadbar Bolt Can Be An Effective Rock Reinforcement System For Ground Support.

Features&Advantages:

Available In Left Hand Or Right Hand Tread.

Higher Thread Ribs Mix Resin Better And Improve Anchorage. Suitable For Using With Either Resin Cartridges Or Cement Grout. It Has Equal Strength On The Entire Length.

Due To Continuous Thread On Entire Length. The Nut Can Be Fastened Upward At Any Place. This Will Increase The Material Utilization Ratio And Save Cost. Available In Black Or Hot Dip Galvanized.

Bearing Plate:

Round Plate, Domed Plate

Accessories:

Domed Nut, Hex Nut, Anti-Friction Washer,Domed Ball

Mechanical Properties

ITEMNO. DIA. MASS YIELD STRENGTH≥335MPa YIELD STRENGTH≥500MPa YIELD STRENGTH≥890MPa
(mm) (kgs/m) YIELD TENSILE ELONGATION YIELD TENSILE ELONGATION YIELD TENSILE ELONGATION
(kN) (kN) (kN) (kN) (kN) (kN)
16 16 1.5 ≥67 ≥97 ≥17% ≥100 ≥135 ≥15% ≥178 ≥231 ≥9%
18 18 1.9 ≥85 ≥123 ≥17% ≥127 ≥171 ≥15% ≥226 ≥293 ≥9%
20 20 2.4 ≥105 ≥152 ≥17% ≥157 ≥211 ≥15% ≥280 ≥364 ≥9%
22 22 2.9 ≥126 ≥182 ≥17% ≥189 ≥255 ≥15% ≥337 ≥438 ≥9%
