132RE RAIL (132LB RAIL)
Product Overview
The 132RE Rail is a heavy-duty rail profile intended for use in industrial rail systems, heavy haul transport, and mainline trains. The 132 lb rail, which weighs 132 pounds per yard and is constructed in accordance with the AREMA standard, offers robust resistance to bending, wear, and fatigue under heavy axle loads. Freight rail lines, port rail tracks, and other demanding rail applications are examples of continuous service conditions where it operates dependably. 132RE rail is still a tried-and-true option for projects that need steady track performance and a long service life.
132RE Rail Material & Sizes

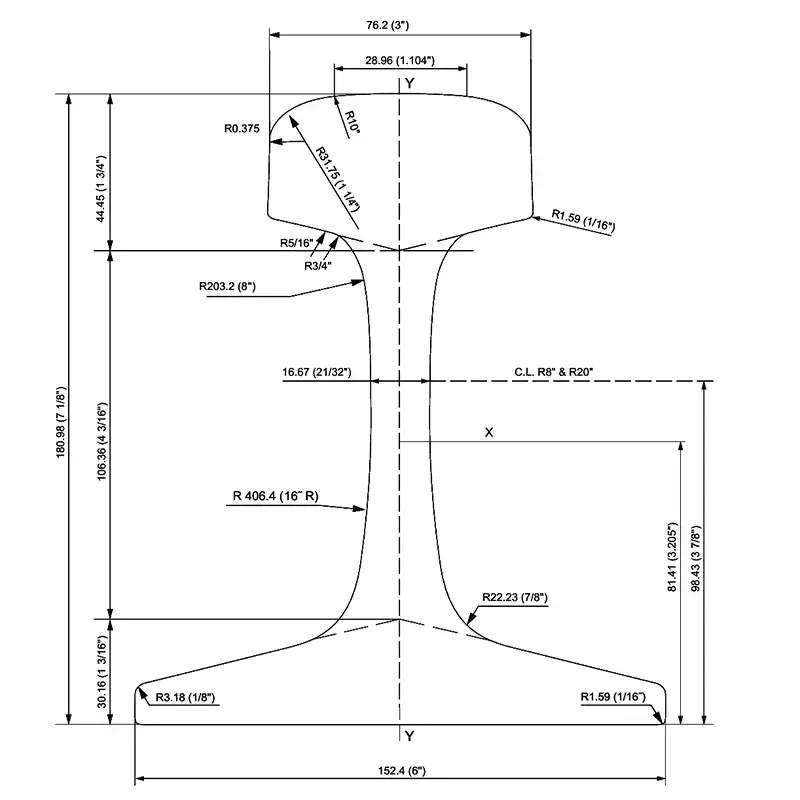

132RE Rail Dimensions
The dimensional data below follows standard 132RE rail specifications for AREMA applications. Standard rail lengths range from 12 m to 25 m, with custom cutting available to match project layouts.
The 132lb rail can be supplied in fixed lengths or project-specific sizes to reduce on-site cutting. If you have special requirements for rail length, please contact us for custom production support.
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| 132RE | AREMA | 180.89 | 152.4 | 76.2 | 16.67 | IS/SS | 65.33 |
132RE Rail Steel Grades
The 115RE rail is available in two steel grades: IS (high-strength) and SS (standard-strength). Each grade differs in mechanical properties and chemical composition, allowing engineers to choose the most suitable option for specific railway design and load requirements. Mechanical properties and chemical composition are shown in the table below:
| IS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 846 | 1271 | 11.50% | 0.78 | 0.52 | 0.95 | 0.03 | 0.03 | 0.25 | 0.25 | 0.25 | ||||
| SS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 564 | 1054 | 10% | 0.82 | 0.53 | 1.17 | 0.03 | 0.03 | 0.3 | 0.25 | 0.25 | ||||

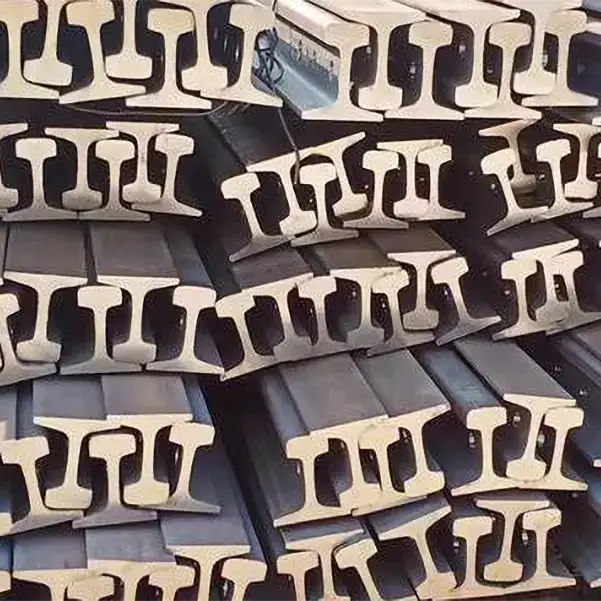

132RE RAIL FOR SALE
Glory Steel Work supplies 132RE rail for rail infrastructure and heavy haul projects, with stable production capacity to support project-based delivery. Our manufacturing and processing facilities allow us to provide controlled cutting and length customization, helping ensure dimensional accuracy that meets AREMA requirements and project specifications. Each 132lb rail is produced with a focus on profile consistency and straightness to support reliable installation on site.
With years of experience supplying steel rails to international markets, we support efficient production scheduling and coordinated logistics for overseas delivery. Our team works closely with customers on lead time, packaging, and technical details to help reduce supply risk and keep rail projects moving on schedule.

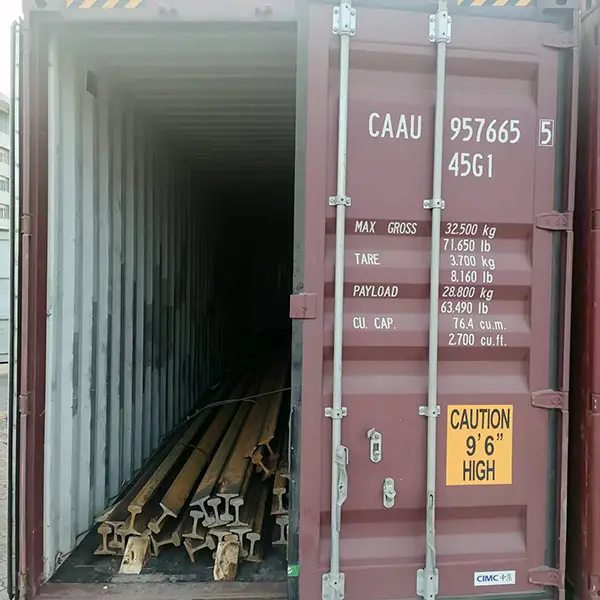

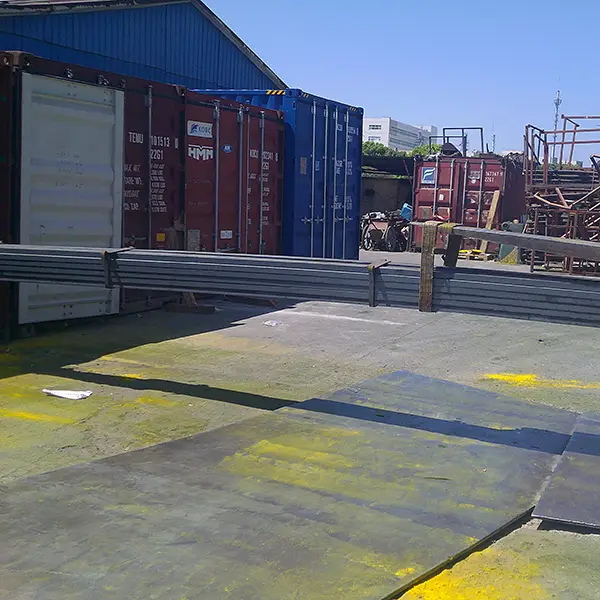

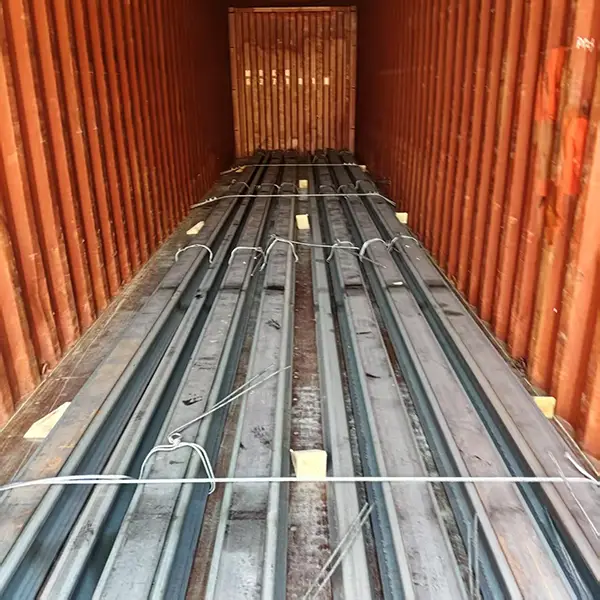

132RE Rail Export and Container Loading
For international projects, 132RE rail is prepared for export based on destination and transport requirements. Rails are typically bundled with steel straps and loaded into containers using forklifts or cranes to ensure safe handling. Standard lengths up to 6 m can be loaded into 20-foot containers, while longer lengths such as 12 m are shipped in 40-foot containers. Packaging options can be adjusted to include wooden supports or protective wrapping when required.
Based on project needs, we coordinate rail length, packaging, and container loading to reduce damage during transport and improve unloading efficiency on site. With experience in overseas rail shipments, our team supports clear documentation and stable loading plans to help ensure smooth delivery from factory to destination.
Get in Touch
Contact us to discuss your 132RE rail requirements, including steel grade, length options, and delivery schedule. Our team will support you with technical confirmation and a clear, project-based quote.
