136RE RAIL (TR68 RAIL)
Product Overview
The 136RE rail (TR68) meets the demands of projects with heavy loads and continuous traffic. In applications where dependability is crucial, such as mainline freight, passenger lines, industrial railways, and port crane systems, engineers employ it. The rail, which comes in steel grades of HH, IS, and SS, can be treated and lengthened to suit certain project design. The 136RE rail guarantees long-term, trouble-free operation and assists teams in keeping projects on schedule through consistent manufacture and meticulous shipment preparation.
136RE Rail Material & Sizes

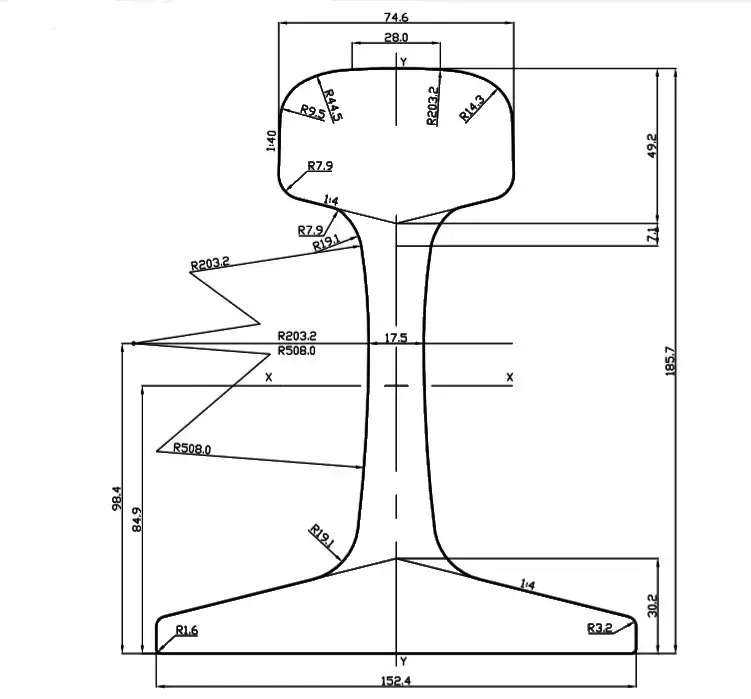

136RE Rail Dimensions
The 136RE rail (TR68) is available in standard lengths from 12 m to 25 m, with custom sizes possible to fit your specific track layout. For projects requiring special processing, we offer custom cutting, end finishing, and drilling services to match your design and installation needs.
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| 136RE | AREMA | 185.7 | 152.4 | 74.6 | 17.5 | IS/SS | 67.5 |
136RE Steel Grades
The TR68 rail is available in three steel grades: HH (Head Hardened), IS (Intermediate Strength), and SS (Standard Strength). Each grade offers a balance of hardness, strength, and wear resistance to match different track demands. For high-wear sections like curves or switches, HH grade provides extra durability. Projects with moderate loads can use IS or SS grades for cost-effective solutions. We also offer special custom steel grades on request to meet unique engineering requirements or extreme operating conditions.
| IS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 846 | 1271 | 11.50% | 0.78 | 0.52 | 0.95 | 0.03 | 0.03 | 0.25 | 0.25 | 0.25 | ||||
| SS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 564 | 1054 | 10% | 0.82 | 0.53 | 1.17 | 0.03 | 0.03 | 0.3 | 0.25 | 0.25 | ||||
136RE RAIL FOR SALE
Our 136RE rails are widely selected for heavy-haul and mainline railway projects, where stable supply and long-term performance matter. With flexible production planning and ready availability, we support both urgent demand and large-scale orders. Each shipment is professionally bundled and prepared for export to ensure safe handling and on-time delivery. Backed by experienced engineering support, we help procurement and project teams source 136RE rails with confidence, efficiency, and clear technical alignment.

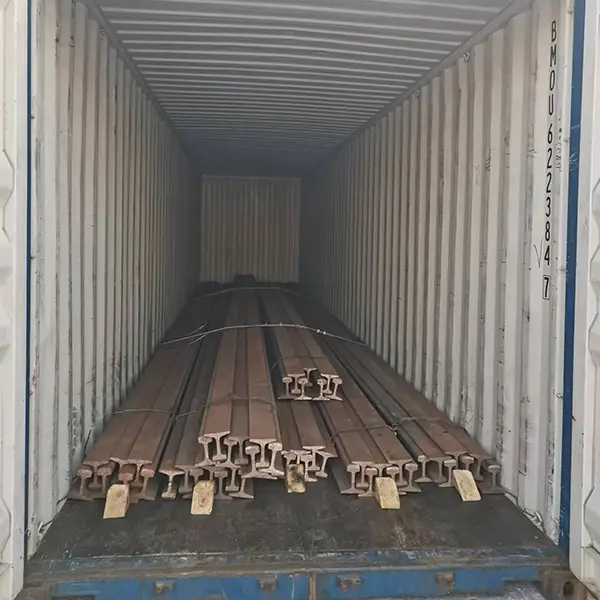

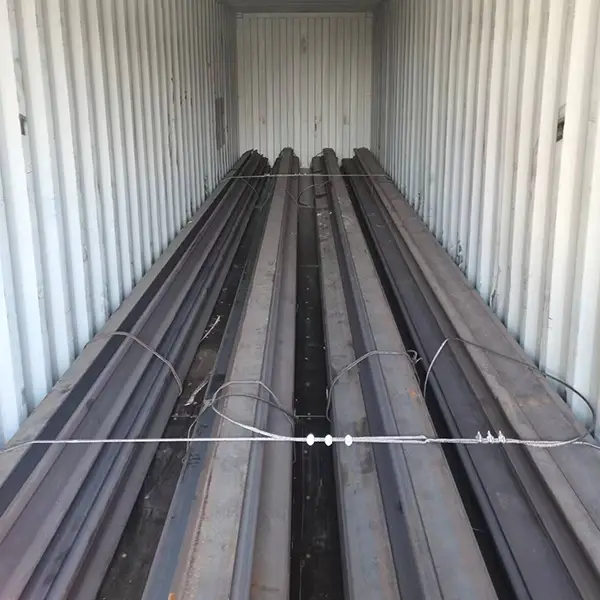

136RE Rail Export and Container Loading
The 136RE rail is prepared for export with strict control over handling and loading conditions. Rails are bundled and secured to maintain straightness throughout transport. Loading arrangements are planned according to rail length and container configuration to optimize space and minimize movement during shipment. Export documentation and shipping schedules are coordinated in advance to reduce port and on-site delays. As a result, 136RE rails arrive in stable condition and are ready for installation upon delivery.
