119RE Rail
Product Overview
119RE rail (119lb rail) is a widely used heavy-duty rail profile for high-load rail applications. It meets AREMA specifications and delivers reliable load distribution with a long service life, even under continuous wheel impact. This rail section is commonly used in railway lines, port crane rails, and industrial transport systems that demand stable performance in harsh operating environments.
119RE Rail Material & Sizes

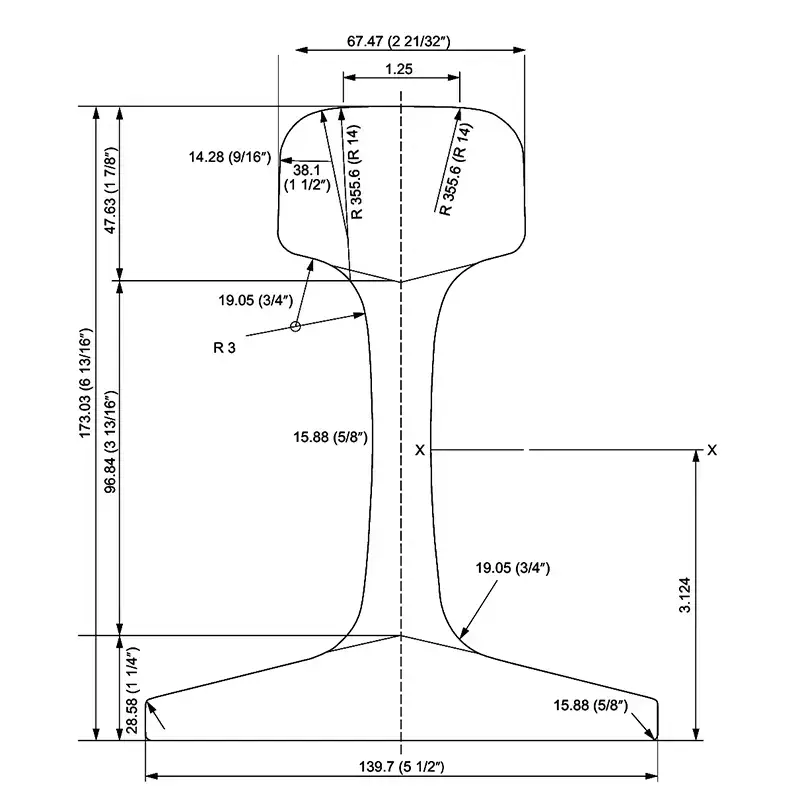

119lb Rail Dimensions
The dimensions of 119lb rail help define how it performs in real-world use. Section height, head width, base width, and weight per meter all affect load handling and track stability. These values also matter when matching the rail with wheels, fastenings, and support systems. The table below lists the standard 119RE rail dimensions, including metric weight, for quick reference and project planning.
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| 119RE | AREMA | 173.03 | 139.7 | 67.47 | 15.88 | IS/SS | 58.86 |
119lb Steel Grades
119lb rail is available in several steel grades to suit different operating conditions. Each grade offers a different balance of strength, wear resistance, and toughness. The right choice depends on factors like wheel load, traffic frequency, and service environment. The table below compares the common 119RE rail steel grades used in railway and industrial applications.
| IS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 846 | 1271 | 11.50% | 0.78 | 0.52 | 0.95 | 0.03 | 0.03 | 0.25 | 0.25 | 0.25 | ||||
| SS | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| 564 | 1054 | 10% | 0.82 | 0.53 | 1.17 | 0.03 | 0.03 | 0.3 | 0.25 | 0.25 | ||||
119RE RAIL FOR SALE

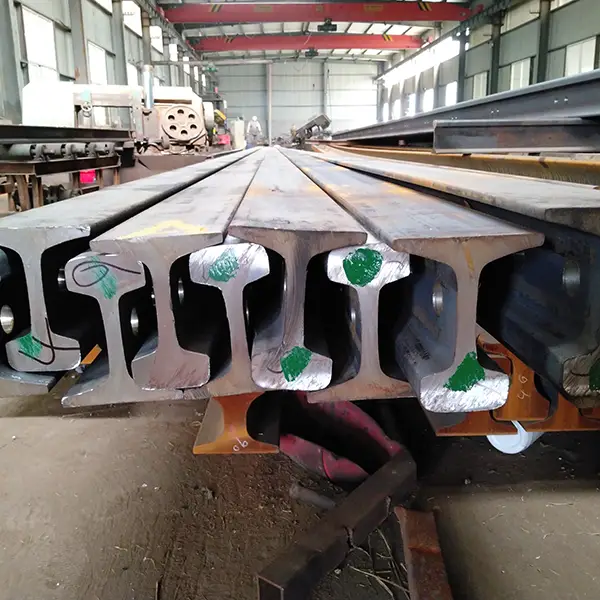

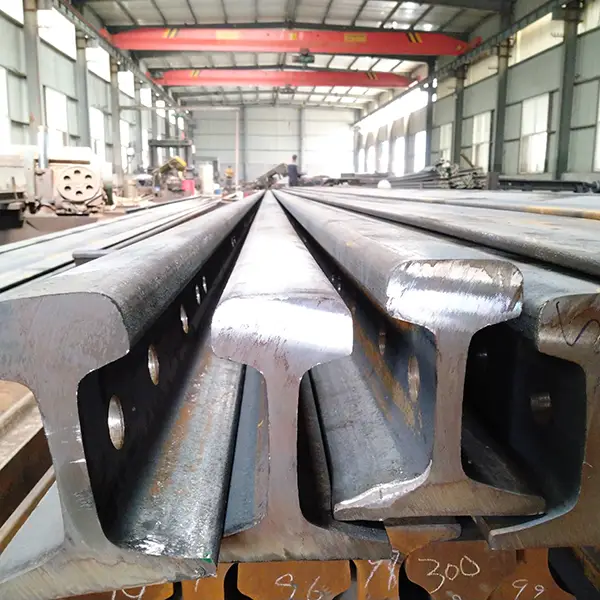

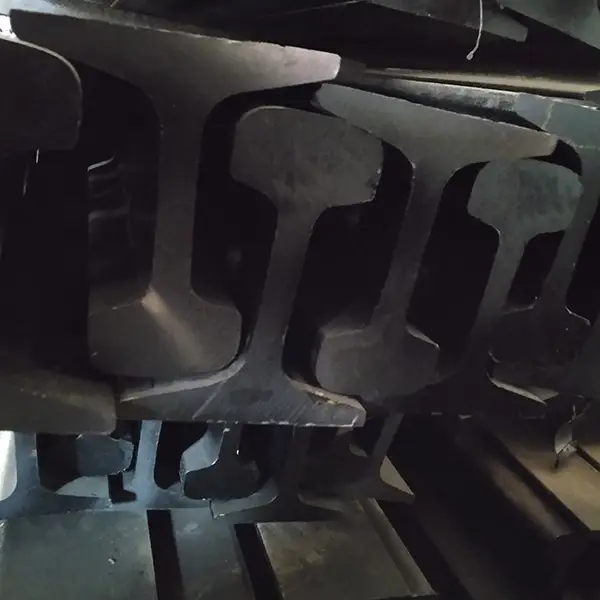

119RE rail (119lb rail) is available from Glory Steel Work in standard lengths and common steel grades. We keep regular inventory for fast dispatch and support custom cutting, drilling, and end finishing based on project requirements. This helps reduce on-site work and shortens installation time.
We supply 119RE rail for railway, port crane, and industrial rail systems worldwide. Our team works closely with contractors and equipment suppliers to ensure the rail meets load, tolerance, and delivery expectations. From quotation to shipment, we focus on clear communication and reliable lead times.
119RE Rail Export and Container Loading

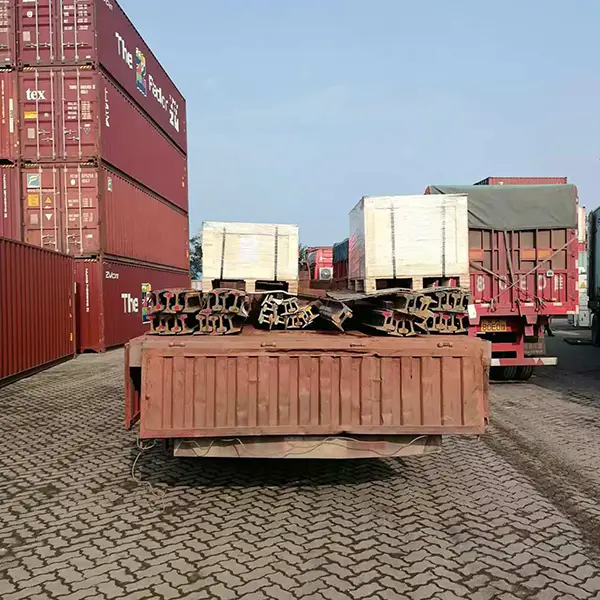

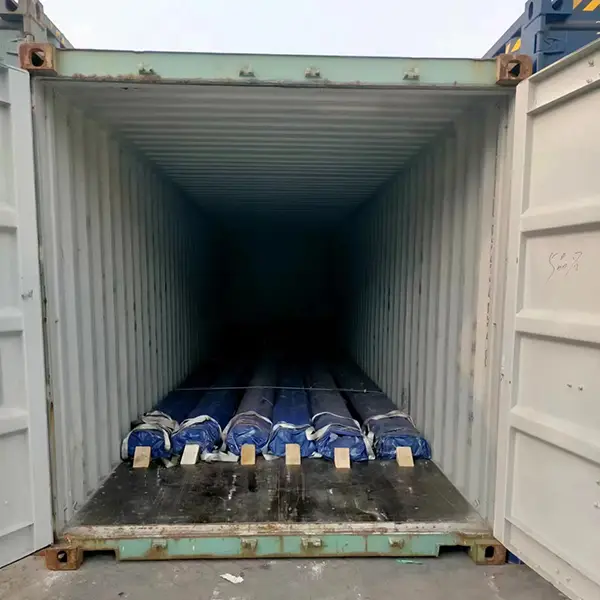

119RE rail is normally bundled with steel straps and loaded into containers by forklift. Packaging can be adjusted based on project needs. Common options include wooden pallets, wooden cases, or oil- and water-resistant wrapping for long-distance transport.
For container loading, 6 m rail lengths are suitable for 20 ft containers, while 12 m rails are typically shipped in 40 ft containers. 12.5 m rails can be loaded into 45 ft containers. For large-volume orders, break bulk shipping is also available to reduce overall transport costs.
Get a Quote for 119RE Rail
Looking for a reliable supply of 119RE rail (119lb rail) for your project? Share your required length, steel grade, quantity, and delivery destination. Our team will provide a clear quotation, technical support, and a practical delivery plan based on your timeline.
