A150 RAIL
A150 Rail Overview
The A150 rail is one of the heavy-duty models under the DIN536 Crane Rail Standard. Detailed A150 rail dimensions and weight per meter are listed in Table 1. With a head width of 150 mm and a web thickness of 80 mm, the A150 rail profile is designed for large-scale cranes, providing excellent stability and load capacity.
Glorysteelwork is a reliable supplier of A150 crane rail in China. This track is an extra heavy-duty rail, with a mass of 150.3 kg/m, making it suitable for extremely demanding lifting equipment. To support projects worldwide, we also provide A150 rail material processing such as cutting, beveling, short rail splicing, and anti-corrosion painting.
A150 Rail Material & Sizes
The A150 rail material used by Glorysteelwork is U71Mn steel. Its detailed mechanical properties and chemical composition are shown in Table 2.
U71Mn is a kind of hot-rolled rails for railways. It is a medium-manganese low-alloy steel rail. It has wear resistance, pressure resistance, and fatigue resistance, which is more than double the service life of carbon steel rails and has good welding performance. , suitable for laying large-radius curved rails, or welding long rails to lay seamless lines, and can also be made into full-length quenched rails. The tensile strength is above 880MPa, and the elongation after fracture is 9%.
Table 1 – DIN A150 Rail Dimensions & Weight
| Type of Rail | Standard | Dimensions (mm) | Steel Grade | Mass (kg/m) | |||
| Height | Base Width | Head Width | Web Thickness | ||||
| A150 | DIN 536 P1:1991 | 150.00 | 220.00 | 150.00 | 80.00 | U71Mn | 150.30 |
Table 2 – U71Mn Mechanical Properties & Chemical Composition
| U71Mn | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 | |||||
Buy A150 Rail from Glorysteelwork

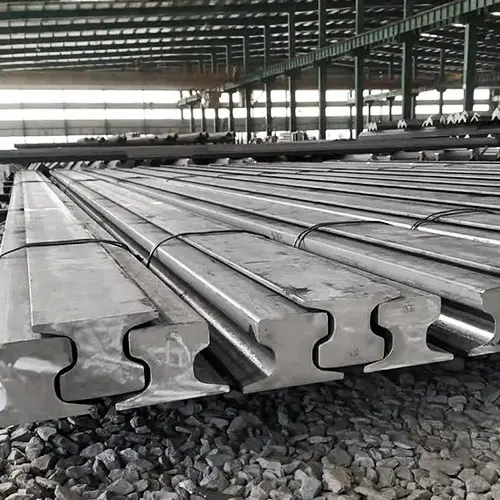

Glorysteelwork is a professional steel supplier from China. We have been engaged in steel processing and supply for more than 20 years. GloryRail is affiliated with Glorysteelwork. Focus on in-depth research on rail systems. In the field of rail systems, we have rich supply experience and technical accumulation. A150 is one of the rail models under the DIN536 standard. Its application range is very broad. It is suitable for heavy cranes and port machinery fields. Glorysteelwork has supplied A150 rails for various port crane projects. Due to the large usage of A150, we will also stock A150rail regularly. Ensure the shortest delivery time and shorten the customer’s international procurement cycle. At the same time, it is aimed at some series of cutting and beveling processing of the A150 rail track. A150 crane rails installation required rubber pads, rail clips, and other accessories. Glorysteelwork provides one-stop professional services. The rail accessories provided ensure high quality and more advantageous cost control.
Get in Touch
Looking for A150 rail specifications, dimensions, or weight per meter for your project? Contact Glorysteelwork today to get expert guidance, quick quotes, and reliable delivery solutions tailored to your crane rail requirements.
