A75 RAIL
A75 Rail Overview
A75 rail is one of the standard crane rails under DIN536 Crane Rail (DIN536 P1:1991). Its specific A75 rail dimensions and weight specifications can be found in Table 1. The A75 rail profile features a 75mm head width, which is a critical parameter for crane wheel matching and ensures stable operation of medium-sized lifting equipment.
Glorysteelwork is a professional A75 crane rail supplier in China, keeping this model as a regular stock product. The A75 crane rail is widely applied in medium-duty lifting equipment, crane tracks, and material handling systems. We provide complete processing services including A75 crane rail cutting, beveling, short rail splicing, and anti-corrosion painting to meet project-specific requirements.
A75 Rail Material & Sizes
Table 1 – DIN536 A75 Rail Dimensions & Weight
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| A75 | DIN 536 P1:1991 | 85,00 | 200,00 | 75,00 | 45,00 | U71Mn | 56,20 |
(For full details, refer to A75 rails drawings and specifications.)
Table 2 – U71Mn Mechanical Properties & Chemical Composition
The A75 steel rail is mainly produced with U71Mn material. The A75 material properties ensure excellent toughness, wear resistance, and weldability. Detailed A75 rail specifications, including mechanical properties and chemical composition, are listed in Table 2.
| U71Mn | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 | |||||
Buy A75 Rail from Glorysteelwork
Glorysteelwork has been engaged in steel supply and processing for over 20 years. As a leading DIN A75 steel rail supplier, we ensure stable stock and quick delivery. Our affiliated brand GloryRail specializes in crane rails and accessories, providing customers with reliable A75 crane rail dimensions, drawings (A75 rails DWG), and specifications.
We also supply rail pads, rail clips, and fastening systems required for A75 crane rails installation, offering a one-stop solution that ensures cost control and superior quality. Whether for DIN A75 systems or customized rail projects, Glorysteelwork delivers high-performance rails with technical expertise and proven reliability.

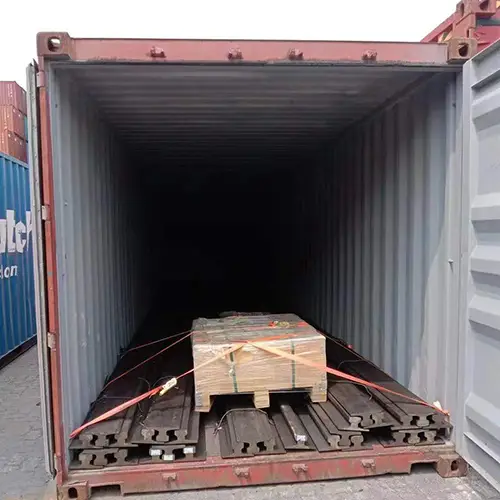

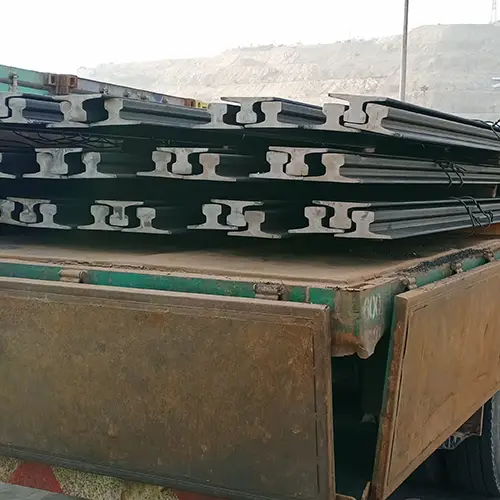

A75 Rails Export and Container Loading
Get in Touch
Looking for A75 crane rail specifications or dimensions for your project? Contact Glorysteelwork today for a quick quote and professional support. We provide fast delivery, reliable A75 crane rail solutions, and one-stop service for rail accessories.
