UIC54 RAIL (54E1)
Product Overview
The UIC54 rail, also called 54E1, is a standard railway track profile defined by the International Union of Railways (UIC). With a base width of 70 mm, height of 159 mm, and base width of 140 mm, the UIC54 rail profile is widely used in railway construction worldwide.
Manufactured from high-quality carbon steel, the UIC54 rail offers excellent strength, wear resistance, and bending performance. It is designed to withstand high-load train operations and adapt well to curved railway lines, making it ideal for high-speed and heavy-duty railway lines.
UIC54 Rail Material & Sizes

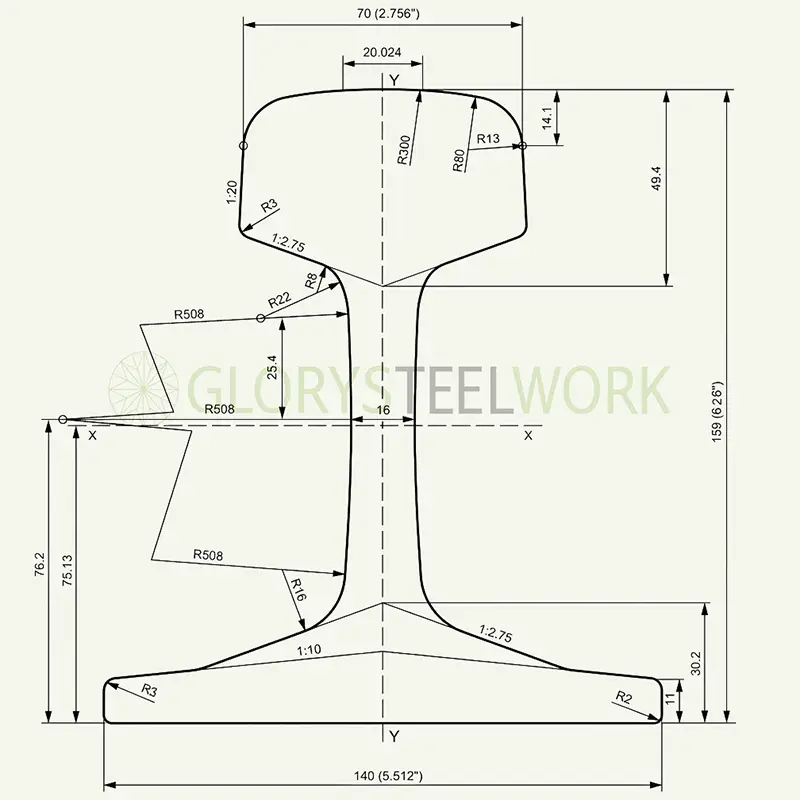

54E1 Rail Dimensions
The UIC54 rail profile follows the UIC standard, ensuring compatibility with global railway systems. Below are the detailed UIC54 rail specifications, including dimensions, steel grades, and mass per meter, for easy reference in design and procurement.
| Type of Rail | Standard | Dimensions mm | Steel Grade | Mass M | |||
| Height | Base Width | Head Width | Web Thickness | kg/m | |||
| UIC54 | UIC | 159,00 | 140,00 | 70,00 | 16,10 | R200, R260, R260MN, R350HT | 54,77 |
54E1 Rail Steel Grades
UIC54 rails are available in multiple steel grades: R200, R260, R260Mn, and R350HT. To meet different railway engineering requirements. Each grade offers distinct combinations of yield strength, hardness, and wear resistance. The following tables detail the UIC54 rail specification for mechanical properties and chemical composition of each grade, ensuring precise selection for your project needs.
| R200 | Mechanical Property | Chemical Composition | |||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥680 | 14% | 200-240 | 0.40-0.60 | 0.15-0.58 | 0.70-1.20 | 0.025 | 0.035 | 3 | 20 | ||||
| R260 | Mechanical Property | Chemical Composition | |||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 10% | 260-300 | 0.62-0.80 | 0.15-0.58 | 0.70-1.20 | 0.025 | 0.025 | 2.5 | 20 | ||||
| R260Mn | Mechanical Property | Chemical Composition | |||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 10% | 260-300 | 0.55-0.75 | 0.15-0.60 | 1.30-1.70 | 0.025 | 0.035 | 2.5 | 20 | ||||
| R350HT | Mechanical Property | Chemical Composition | |||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥1175 | 9% | 350-390 | 0.72-0.80 | 0.15-0.58 | 0.70-1.20 | 0.025 | 0.020 | 2.5 | 20 | ||||
Features of UIC54 Rail
High strength
UIC54 rail is made of high-quality carbon steel material, which has high strength and can withstand high-load train operation, and is suitable for the construction of high-speed and heavy-duty railway lines.
Wear resistance
UIC54 rail has good steel quality, excellent processing technology, and high surface hardness, so its wear resistance is also very good, which can meet the requirements of the long-term high-speed operation of trains.
Excellent bending performance
UIC54 rail has good bending performance, can adapt to the bending curve of the railway line, and can maintain a good line geometry.

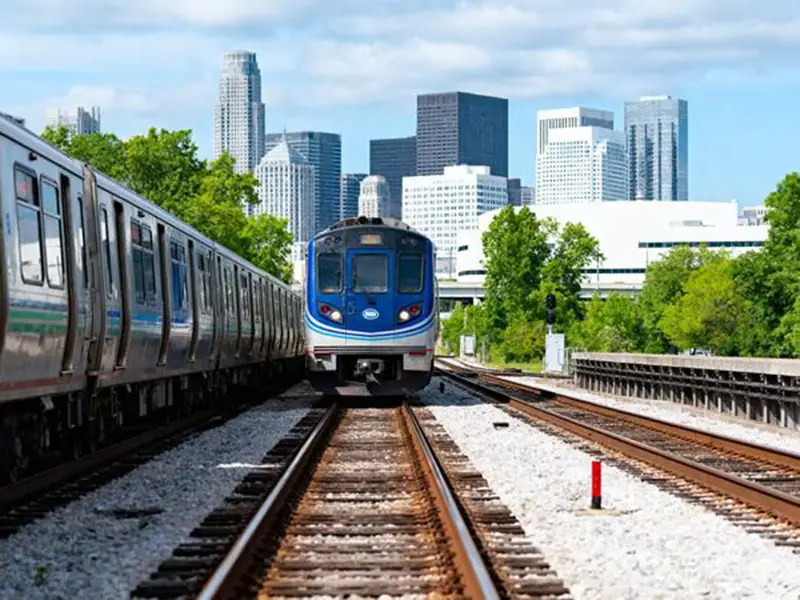

Applications of UIC54 Rail

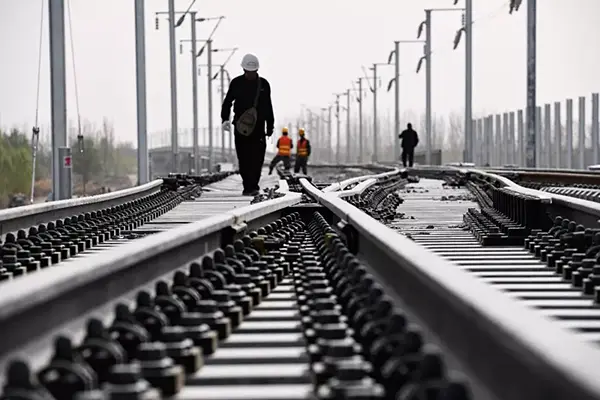

Railway construction: UIC54 rails are widely used in the construction of railway lines, especially suitable for the construction of high-speed and heavy-duty lines.
Railway maintenance: UIC54 rails have a long service life and good wear resistance, so they are also widely used in railway maintenance and renewal work.
Railway reconstruction: In railway reconstruction projects, UIC54 rail is also a commonly used rail specification, which can adapt to different needs of railway lines and meet the requirements of reconstruction projects.
UIC54 RAIL FOR SALE
At GlorySteelWork, we specialize in railway tracks sales and supplying high-quality UIC54 rails that meet international standards. Our stock includes various lengths and steel grades tailored to your project needs.
Our experienced sales and technical teams offer professional advice and support to ensure you get the best products and services. At the same time, we also provide fast and reliable delivery service to ensure that you can get the UIC54 track you need in time.
UIC54 Rail Export and Container Loading
Get in Touch
For inquiries or quotations on UIC54 rails, contact our sales team. We look forward to supporting your railway projects with quality rails and expert service.
